Protocol - Intraocular Pressure
Intraocular pressure (IOP) is measured using the TONO-PENÂ® XL instrument. The cornea is prepared by introducing one drop of anesthetic onto the surface of the eye and the TONO-PENÂ® is used to obtain four valid IOP measurements. The instrument calculates an average and the examiner records the average. The instrument also provides the reliability level of the measurement. Only those readings that have a 5% variability level are recorded as they are considered to be accurate.
This protocol uses TONO-PENÂ® to measure intraocular pressure. This instrument has the advantages of portability and is relatively easy to use. Other hand-held instruments can be used to measure intraocular pressure. If other instruments are used, the reproducibility of the measurements should be comparable to those acquired with this protocol. In addition, when other instruments are used to collect these measurements, the manufacturer and model of equipment should be recorded. These other devices may require some different steps than are described in this protocol. Investigators should follow the equipment manufacturers instructions to ensure quality control.
Measuring Intraocular Pressure Using the TONO-PEN® XL.
The Ocu-Film located on the tip of the TONO-PEN® XL contains natural rubber LATEX which may cause allergic reactions. Question patients about allergies to Latex before examining them with the TONO-PEN® XL.
To prepare a patient for an IOP measurement:
1. Instill a drop of topical anesthetic onto the eye to be examined.
2. Position the patient, seated or supine, in front of a fixation target; or have the patient fixate on a point of reference (i.e. ear, nose, distant object) to minimize eye movement.
Note: The TONO-PEN® XL will function in any stable position.
To Perform an IOP measurement:
1. Instruct the patient to look straight ahead at the fixation target with his/her eyes fully open.
2. Hold the TONO-PEN® XL unit as you would a pencil.
3. Position yourself to facilitate viewing of the probe tip and patients cornea where contact will be made. For normal corneas, central corneal contact is recommended.
4. Brace the heel of your hand on the patients cheek for stability while holding the TONO-PEN® XL unit perpendicular to and within ½ inch of the patients cornea.
5. To initiate an IOP measurement, depress the Operators Button once, and only once.
- Initially you will see a brief display of 126.96.36.199. This is a self-test of the LCD (Liquid Crystal Display). If any of the LCD segments are not displayed, the TONO-PEN® requires service.
- If a momentary display of ICALI is seen, followed immediately by a single row of dashes [- - - ], it indicated that the TONO-PEN® requires calibration before it will measure.
- If a double row of dashes is seen and a "beep" tone is heard, it indicates that the TONO-PEN® is ready to measure IOP. Proceed with applanation within 15 seconds.

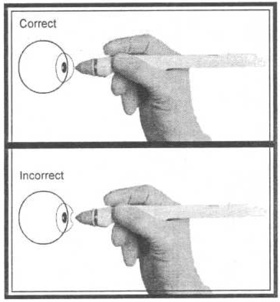

6. Once active, after [ ==== ] is displayed and a "beep" tone is heard, touch the TONO-PEN® XL unit to the cornea lightly and briefly, then withdraw. Repeat several times. The corneal surface needs only to be momentarily contacted: indentation is not required and may lead to inaccurate readings.
7. A chirp will sound and a digital IOP measurement will be displayed each time a valid reading is obtained. The single horizontal bar at the bottom of the LCD, indicating statistical reliability, will not be displayed with each single IOP measurement.
8. After four (4) valid readings are obtained, a final beep will sound and the averaged measurement will appear on the LCD along with single bar denoting statistical reliability.
9. To take another measurement, reactivate the TONO-PEN® XL unit by pressing and releasing the activation switch as described in step 5.
10. Replace the Ocu-Film Tip Cover before using the TONO-PEN® XL unit on another patient and before storage.
Criteria for Emergency Referral
Any participant with intraocular pressure greater than 40 mm Hg should be referred immediately to a medical center. Notify the medical center by phone that the participant is on the way and that the patient has a high intraocular pressure and may need a laser iridotomy.
Criteria for Non-emergent Referral
Any participant with intraocular pressures between 21 mm Hg and 40 mm Hg or a potentially occludable angle should be referred to an ophthalmologist for a glaucoma-suspect work-up. The participant will be educated as to the seriousness of further testing and follow-up.
Personnel and Training Required
Trained ophthalmic technicians or ophthalmologists
TONO-PEN® XL Applanation Tonometer (Reichert Ophthalmic Instruments, Depew, NY)
TONO-PENÂ® is a registered trademark Reichert, Inc.
Note: This protocol uses TONO-PENÂ® to measure intraocular pressure. This instrument has the advantages of portability and is relatively easy to use. Other hand-held instruments can be used to measure intraocular pressure. If other instruments are used, the reproducibility of the measurements should be comparable to those acquired with this protocol. In addition, when other instruments are used to collect these measurements, the manufacturer and model of equipment should be recorded. These other devices may require some different steps than are described in this protocol. Investigators should follow the equipment manufacturers instructions to ensure quality control.
